PermaStripe®
Product code: PERM
- Homogenous
- Beveled Edge
- Easy to apply
- 0.05″ thick
- Widths from 2″ to 4″ (bar Glow in the Dark)
- Free samples
- 3 Year Guarantee
- Overview
- Colors
- Designs

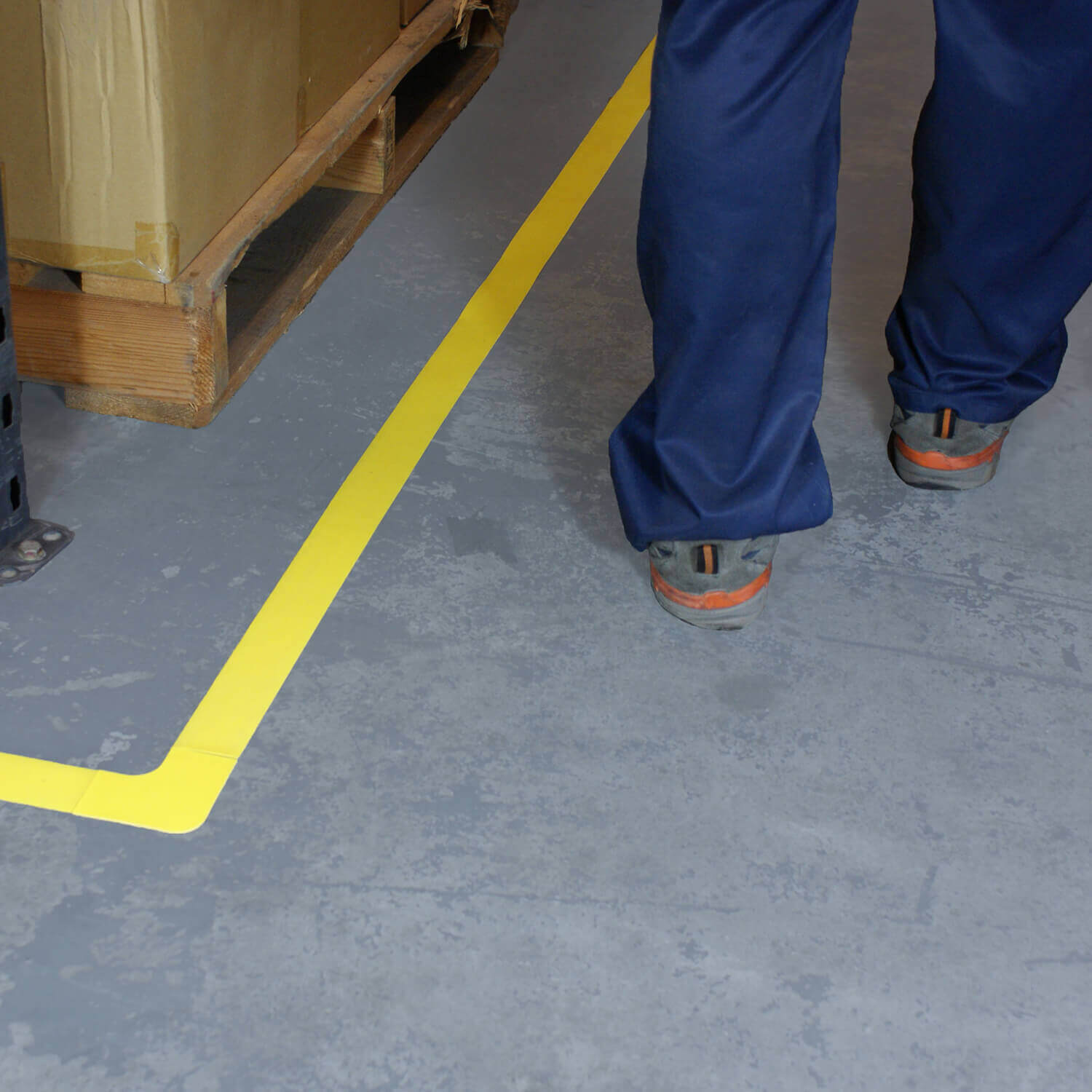

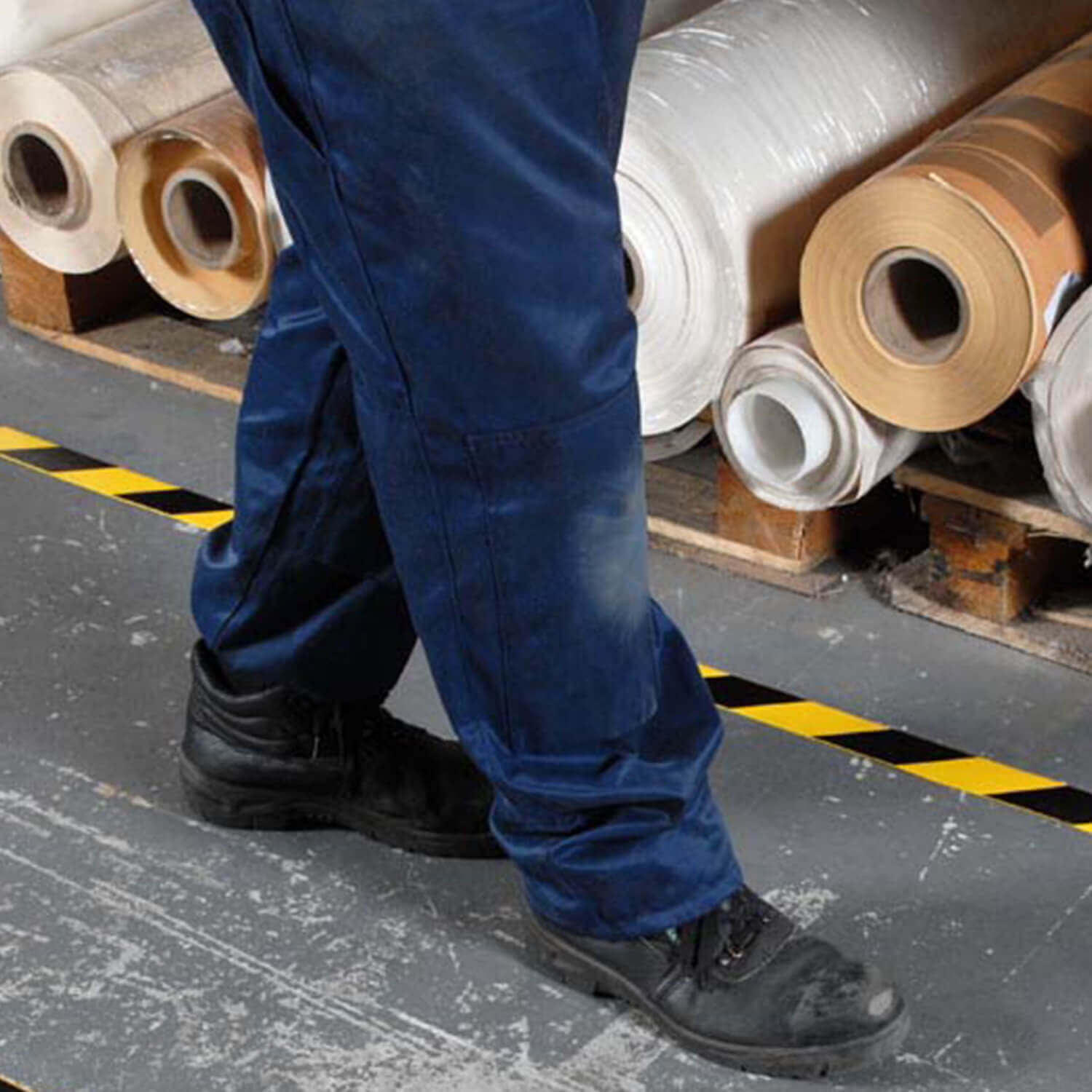

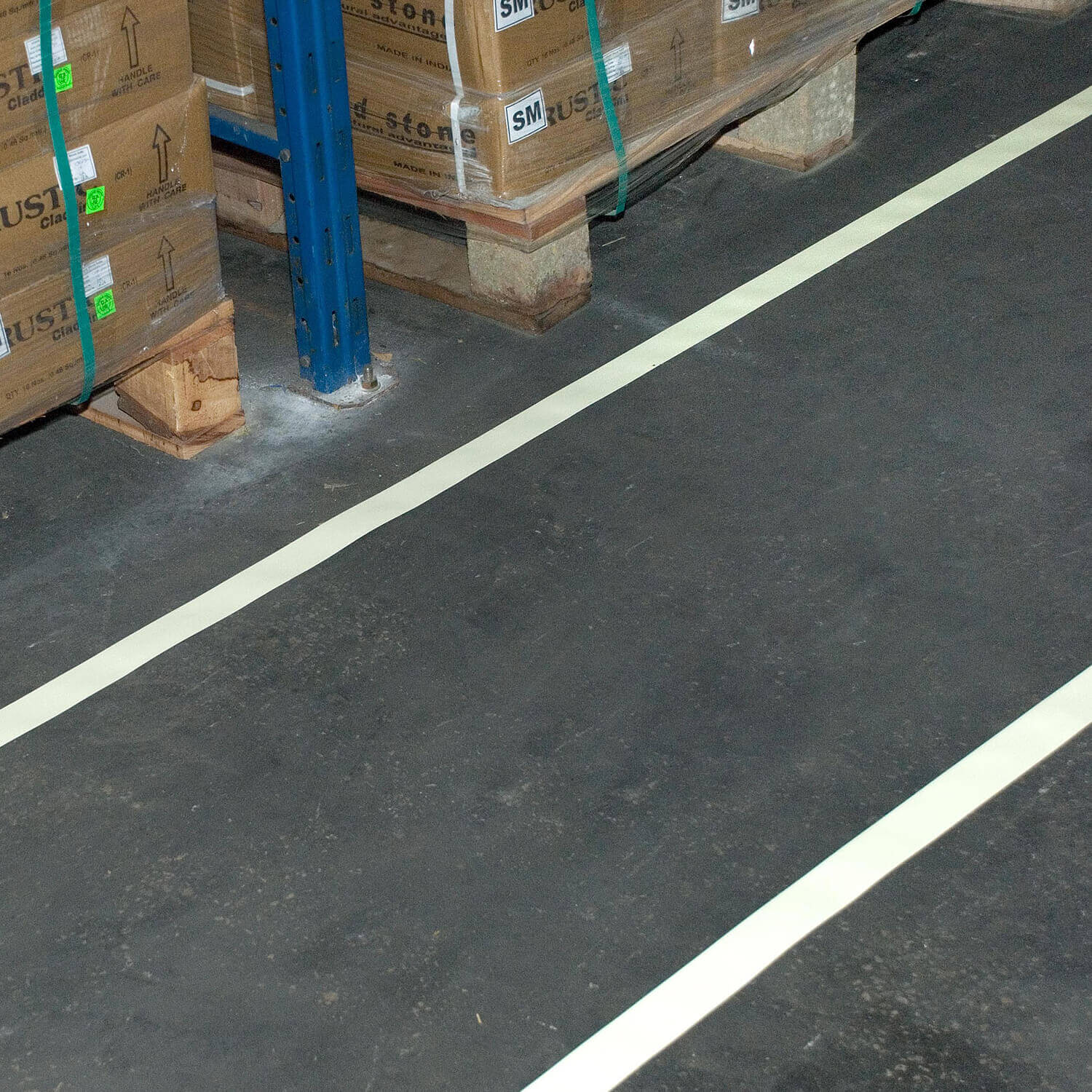

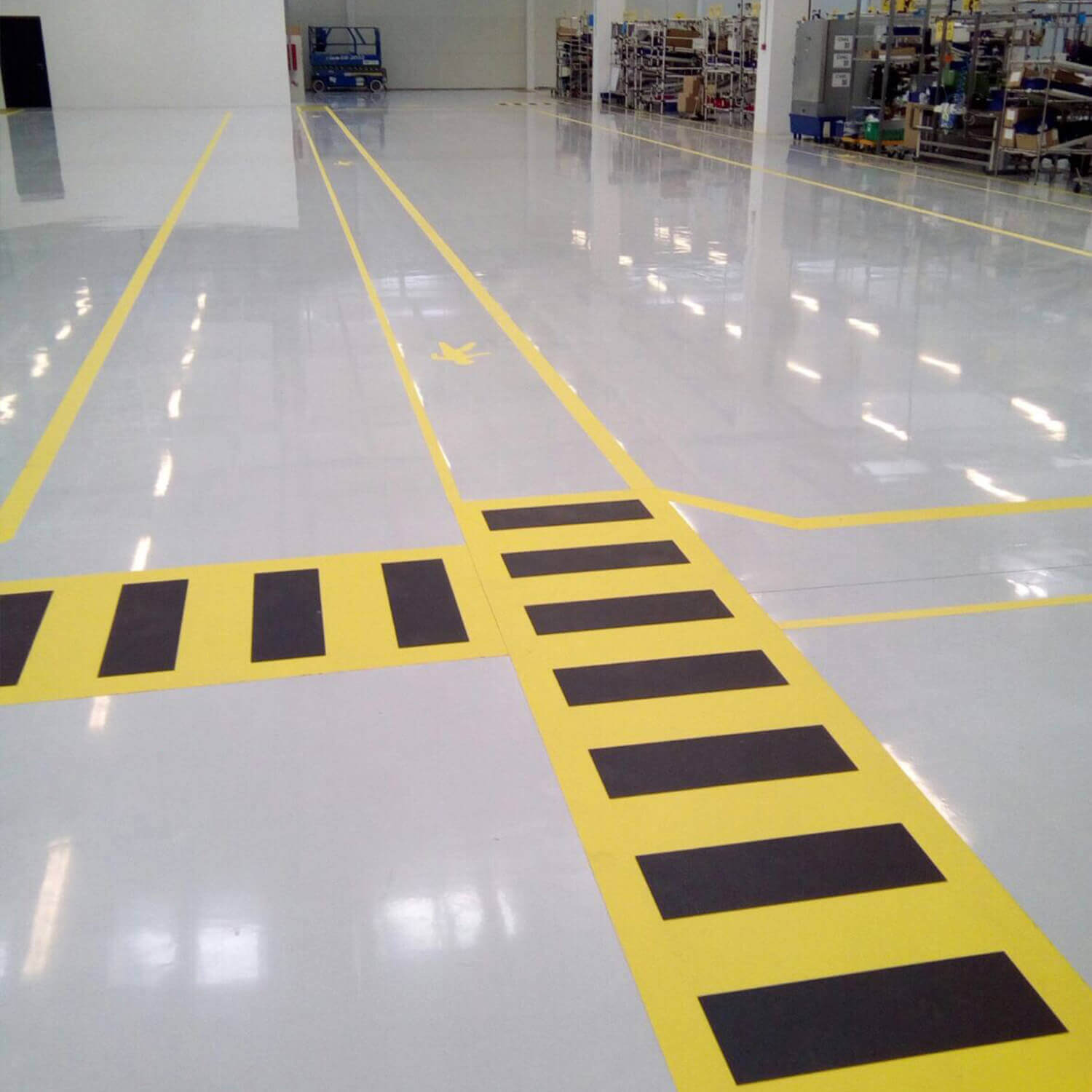

PermaStripe® is the worlds most effective, durable line marking system and can be used for warehouse walkway markings as an alternative to painted lines or resin. With PermaStripe® line marking tape, you can create clearly defined routes for employees to perform duties and guests to pass through work areas safely and effectively.
Benefits
PermaStripe® is an industrial-grade marking tape, with a thickness of 0.05″. It’s homogenous construction means that any scrapes won’t affect the color marking, as it is present throughout the material.
Made of a durable PVC with an embossed surface and bevelled edges, PermaStripe® floor tape is easily applied to a clean, dry surface using it’s strong, permanent adhesive which coats the base from edge to edge.
PermaStripe® Sizes
PermaStripe® line marking tape available for immediate dispatch in 2″, 3″ and 4″ in width and 98ft in length, as well as various die-cut shapes in various colors, which can be seen here.
Glow in the Dark PermaStripe® is only available in 3″ and 4″ width rolls.
Installation
Installation for the whole PermaStripe® range is easy. Simply peel back the backing liner and stick down to a clean, dry surface. No detailed preparation beyond cleaning and drying the surface is required and once the application is complete, the area is ready immediately. This results in minimal downtimes, which is crucial for a workplace.
When you use PermaStripe® for warehouse walkway markings, you are creating an optimised facility, allowing duties to be performed more efficiently than previous. Our PermaStripe® color range allows you to create a fully optimised, 5S floor plan.
Die-Cuts
We have various PermaStripe® shapes in many sizes available for immediate dispatch. Shapes that help you to create a custom floor marking system to achieve 5S optimisation. Our fleet of in-house production machines ensures stock is always available.
Previous to the PermaStripe® system, when creating custom floor tape, the neat joins were only achievable via squared-off edges by either lining the tape up, or the better, but more risky method of cutting the PermaStripe® at various angles where a slip could mean an injury. We now have PermaStripe® available for immediate dispatch in various shapes and colors, allowing you to create a custom floor marking tape system in the shortest time possible.
Removing PermaStripe®
Removal is possible, and due to the thickness and extreme strength of PermaStripe®, it will not snap when removed. This allows for easy 5S changes in the workplace, unlike resin or painted lines.
PermaStripe® 3 Year Guarantee
The Heskins guarantee for PermaStripe® is conditionally guaranteed for 3 years from product purchase. Warranty claims are only limited to the replacement of PermaStripe®. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.
If you would like to request samples, please complete the PermaStripe® sample request form.
To enquire further, or place an order, you can contact our sales team via phone or live chat. Alternatively, complete the Make an Enquiry form above, and we will get back to you as soon as possible.
PERM_N
Pantone / RAL
Black 6 / 9004
PERM_R
Pantone / RAL
199U / 3018
PERM_O
Pantone / RAL
021U / 2009
PERM_Y
Pantone / RAL
108U / 1018
PERM_F
Pantone / RAL
803U / 1016
PERM_V
Pantone/RAL
Green U/6018
PERM_B
Pantone / RAL
299U / 5012
PERM_P
Pantone / RAL
268 C / 4007
PERM_W
Pantone / RAL
7541 / 9003
PERM_D
Pantone / RAL
Black 6 & 1235 / 9004 & 1021
PERM_A
Pantone / RAL
485 & 7541 / 3001 & 9003
PERM_E
Pantone / RAL
Black 6 & 7541 / 9004 & 9003
SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)
L
T
X
DOT 2IN Ø
DOT 3.5IN Ø
SHORT ARROW

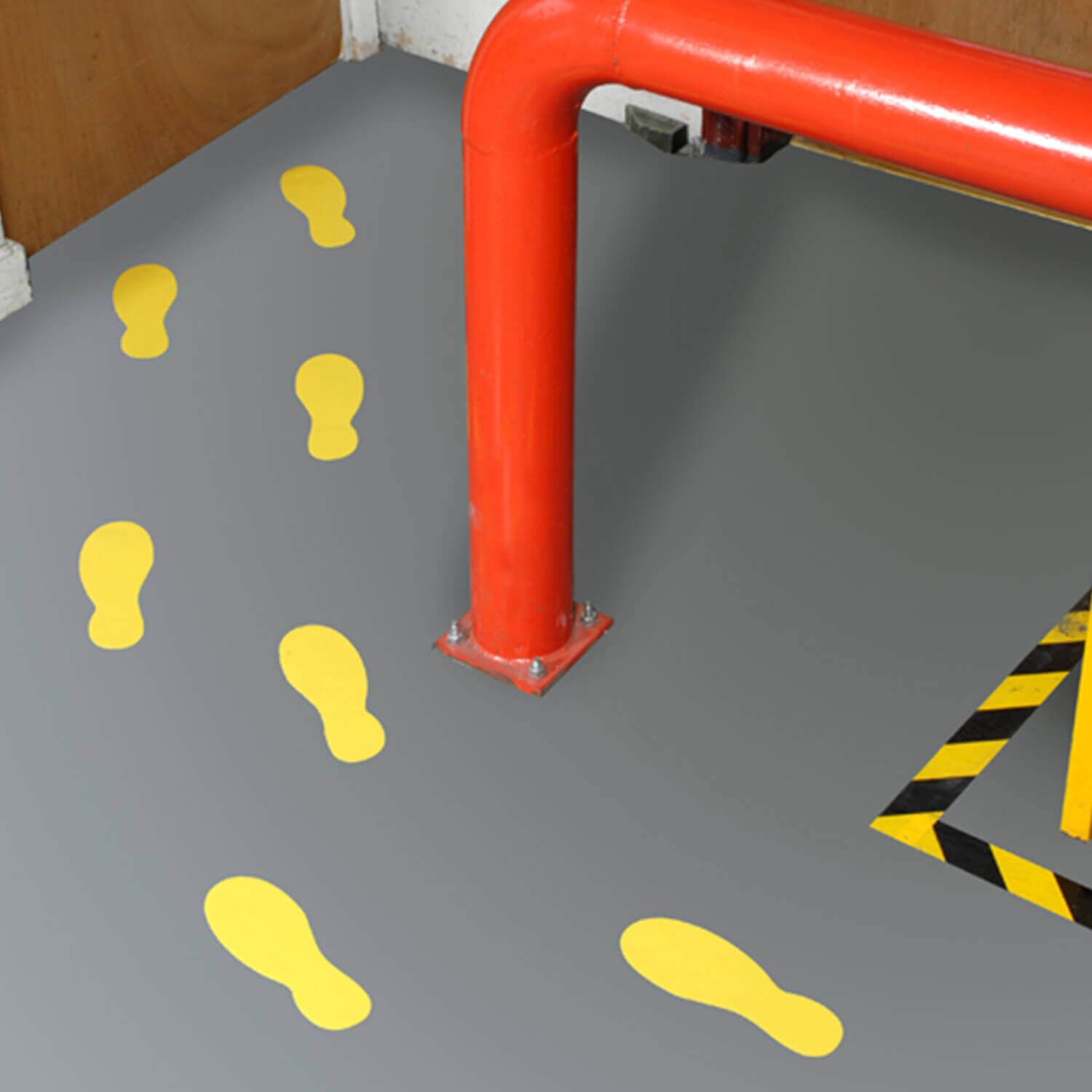

FEET (CLICK IMAGES TO VIEW DIMENSIONS)
FEET
FEET
FEET
SHOES
BOOTS
JOINS (CLICK IMAGES TO VIEW DIMENSIONS)
90° CORNER
90° CORNER
90° CORNER
45° CORNER
45° CORNER
45° CORNER
T-JUNCTION
T-JUNCTION
T-JUNCTION
BRIDGE
BRIDGE
BRIDGE
END CAP
END CAP
END CAP
NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)
ZERO
1
2
3
4
5
6
7
8
9
LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
